tamulauncher

tamulauncher provides a convenient way to run a large number of serial or multithreaded commands without the need to submit individual jobs or a Job array. tamulauncher takes as arguments a text file containing all commands that need to be executed and tamulauncher will execute the commands concurrently. The number of concurrently executed commands depends on the batch requirements. When tamulauncher is run interactively the number of concurrently executed commands is limited to at most 8. tamulauncher is available on all clusters. There is no need to load any module. tamulauncher has been successfully tested to execute over 100K commands.

tamulauncher is preferred over Job Arrays to submit a large number of individual jobs, especially when the run times of the commands are relatively short. It allows for better utilization of the nodes, puts less burden on the batch scheduler, and lessens interference with jobs of other users on the same node.

Synopsis

[ username@cluster ~]$ tamulauncher --help
   Usage: /sw/local/bin/tamulauncher [options] FILE

   This script will execute commands in FILE concurrently.

   OPTIONS:

     --commands-pernode | -p <n>
            Set the number of concurrent processes per node.

     --norestart
            Do not restart.

     --status <commands file>
            Prints number of finished commands and exits.

     --list <commands file>
            Prints detailed list of all finished commands and exits.

     --remove-logs <commands file>
            Removes the log directory and exits

     --version | -v
            Prints version and exits.

     --help | -h | ?
            Shows this message and exits.

Commands file

The commands file is a regular text file containing all the commands that need to be executed. Every line contains one command. A command can be a user-compiled program, a Linux command, a script (e.g. bash, Python, Perl, etc), a software package, etc. Commands can also be compounded using the Linux semi-colon operator. In general, any command that will work when typed in a bash shell will work when executed using tamulauncher. Below is an example of a commands file; it illustrates a commands file can contain any combination of commands (although in practice it's mostly a repetition of the same command with varying input parameters). Many times a commands file can be generated automatically.

./prog1 125
./prog2 "aa" 3
mkdir testcase1 ; cd testcase1; ./myprog
./prog1 100
    :
    :
    :
time ./prog3
python mypython.py
./prog1 141 ; ./prog4 > OUTPUT
./prog5 < myinput

SBATCH parameters

The latest Slurm version on HPRC clusters strictly enforces cpu limits in batch jobs. Since tamulauncher uses OpenMP to distribute tasks intra-node, there are some specific rules for setting SBATCH values. Make sure to set --ntasks-per-node=1 and --cpus-per-task=N (where N is the total number of cores per node). For example, suppose a single node has 48 cores and we want to concurrently execute 480 commands.

#SBATCH --nodes=10
#SBATCH --ntasks-per-node=1
#SBATCH --cpus-per-task=48

Dynamic release of resources

tamulauncher will automatically release resources whenever they become idle. Resources will be released on per-node basis. This feature is especially useful in cases where the majority of requested cores/nodes are idle, taking up valuable resources, while only a few cores are processing the last few commands.

NOTE You might see some slurm error messages such as "srun: error: : task 7: Killed". These messages can be safely ignored.

NOTE: This is an experimental feature we are still improving on. For that reason, as well as well as some needed changes to calculation of SUs, the number of SUs charged will not be adjusted at this time. However, it will help to make the cluster less congested.

Using Drona Composer to run tamulauncher jobs

Drona Composer provides a 100% graphical interface to generate and submit tamulauncher jobs without the need to write a Slurm script or even be aware of Slurm syntax and tamulauncher internals. Drona guides you in providing tamulauncher specific information and generates and submits a Slurm job on your behalf.

Accesing Drona Composer

Drona is available on all HPRC Portals. Once you log in to the portal of your choice, select Drona Composer from the Jobs tab. This will open a new window showing the Drona composer interface.

Drona Environments

You can find the tamulauncher environment in the Environment Dropdown. The image below shows a screenshot of the Drona composer interface with a dropdown menu with all available environments. NOTE: if you don't see the tamulauncher environment, you need to import it first. Just click on the + sign next to the environments dropdown and select the tamulauncher environment in the popup window. You only need to do this once. See the import section for more information.

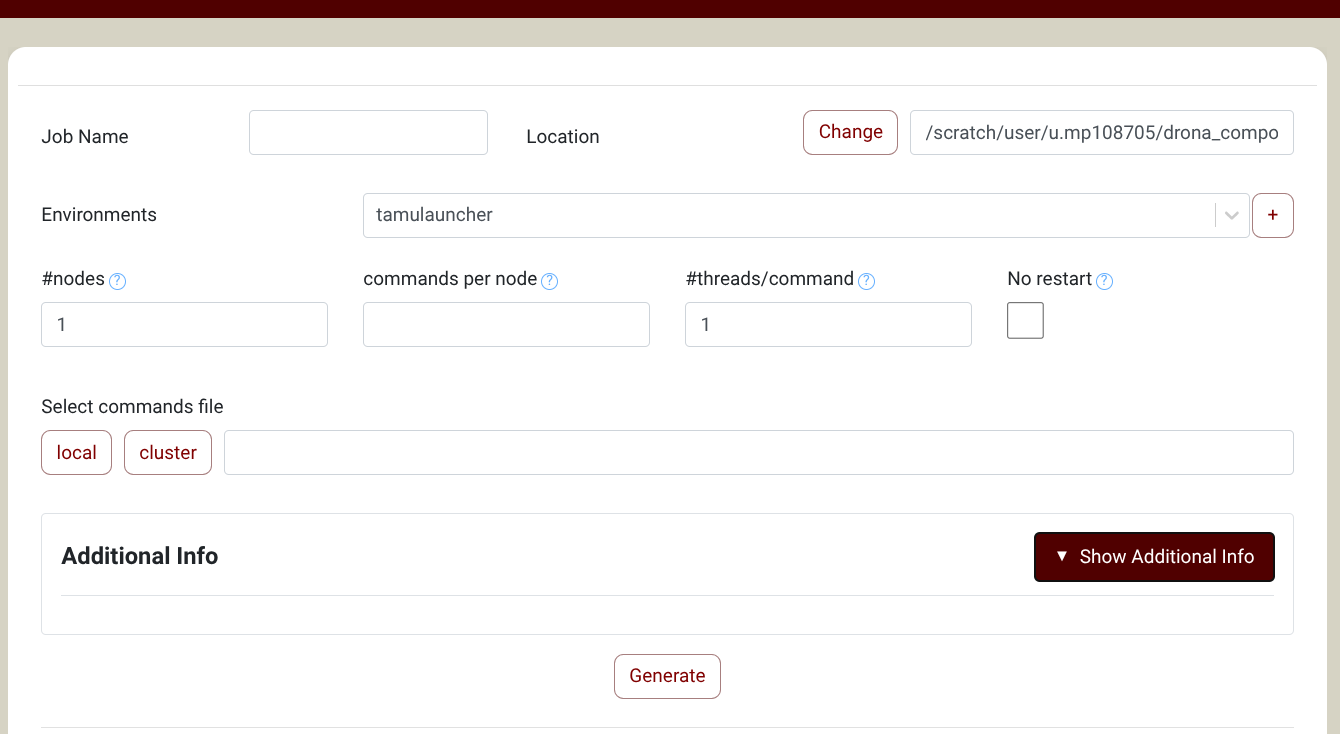

Once you select the tamulauncher environment, the form will expand with additional fields to guide you in providing all the relevant information. The screenshot below shows the extra fields for the tamulauncher environment.

Once you have filled in all the fields, click the "Generate" button. This will show a fully editable preview screen with the generated job scripts.

You are welcome to inspect the generated files and make edits.

To submit the job, click on the submit button, and Drona Composer will submit the generated job on your behalf.

For detailed information about Drona composer, checkout the Drona Composer Guide

Examples

The following sections show two simple examples how to use tamulauncher. The first examples shows how to run serial commands and the second example shows how to run multi-threaded (OpenMP) commands.

Example 1: Running serial commands

#!/bin/bash

#SBATCH --export=NONE
#SBATCH --get-user-env=L

##NECESSARY JOB SPECIFICATIONS
#SBATCH --job-name=demo-tamulauncher
#SBATCH --output=demo-tamulauncher.%j
#SBATCH --time=07:00:00
#SBATCH --nodes=10
#SBATCH --ntasks-per-node=1
#SBATCH --cpus-per-task=48
#SBATCH --mem=4096M

tamulauncher commands.in

In the above example, tamulauncher will extract the requirements specified in the SLURM script and distribute all the commands over the 480 cores.

Example 2: Running multi-threaded (OpenMP) commands

The next example shows how to run a bunch of OpenMP executables, where every command will use 4 threads

#!/bin/bash

#SBATCH --export=NONE
#SBATCH --get-user-env=L

##NECESSARY JOB SPECIFICATIONS
#SBATCH --job-name=demo-tamulauncher
#SBATCH --output=demo-tamulauncher.%j
#SBATCH --time=07:00:00
#SBATCH --nodes=10
#SBATCH --ntasks-per-node=1
#SBATCH --cpus-per-task=48
#SBATCH --mem=4096M


export OMP_NUM_THREADS=$SLURM_CPUS_PER_TASK
tamulauncher -p 12 commands.in

In the above example, tamulauncher will extract the requirements specified in the SLURM script and distribute all the commands over the 100 tasks. The SLURM --cpus-per-task option will make sure 4 cores are reserved for every task and every command can use up to 4 threads.

Automatic Restart

tamulauncher keeps track of all commands that have been executed. When you start a tamulauncher job it will check for a log (located in directory .tamulauncher-log) from a previous run and if that is the case, it will continue executing commands that did not finish during the previous run. This is especially useful when a tamulauncher job was killed because it ran out of wall time or there was a system problem. To turn off the automatic restart option, use the 'norestart flag in your tamulauncher command, e.g.

tamulauncher --norestart commands.in

Using this option tamulauncher will just wipe all the log files and it will start as if it was a first run.

NOTE: tamulauncher keeps a log for every unique commands file. If you make any changes to the commands file, tamulauncher will assume it's a different commands file and will create a new log directory. This also means multiple tamulauncher runs can be executed in the same directory.

Monitoring runs

To see how many commands have been executed use the --status flag in tamulauncher:

[ username@cluster ~]$tamulauncher --status

This will show a one-line summary with the number of commands executed and the total number of commands for the tamulauncher run on .

To see a full listing of all finished commands use the --list flag in tamulauncher:

[ username@cluster ~]$tamulauncher --list

This will show a list of all commands that have finished executing, including index in the commands file, total run-time time, and exit status for the tamulauncher run on .

Clearing the log

To clear the log for a particular tamulauncher run, use the --remove-logs flag.

[ username@cluster ~]$tamulauncher --remove-logs

This will clear the logs for the latest tamulauncher run on commands file . NOTE: don't clear the logs while tamulauncher is still running on that particular .
